Venting Plug
Product Code: DC12PA7035
Rating: Be the first to write a review
Weight: 10.0g
Product Condition: New
Units in Stock: 5

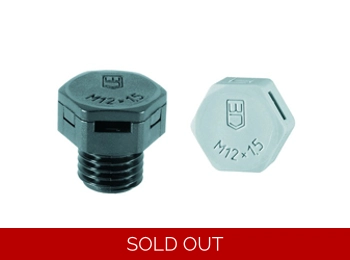

The DC series of venting plugs are designed to provide protection for hermetically sealed electronic enclosures. The design allows continuous ventilation and adaption of the inner enclosure pressure to prevent condensation build up whilst maintaining the IP rating of your enclosure.
The venting plug can be installed using the locking nut supplied or by tapping an M12 threaded hole into your enclosure.
Features
- Typical Air flow > 90-130 ml/min/cm² at ∆p = 0,01 bar
- Water entry pressure > 1 bar
- Temperature range -40 °C to +100 °C
- IP Rating IP66/IP67/IP69K
- Connecting thread metric, as per EN 60423
- Polyamide material fulfills UL 94 V-0
- M12 Thread
£8.50 inc. tax
