Waterproof Power Connector
Product Code: WPC01
Rating: Be the first to write a review
Brand: Dew Control
Weight: 30.0g
Product Condition: New
Units in Stock: 10

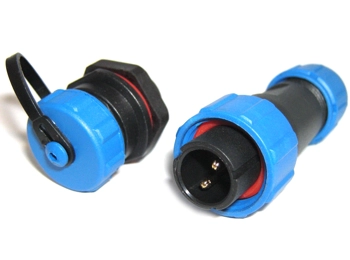

IP68 rated power connector and bulkhead socket suitable for indoor and outdoor use, perfect for your All Sky Camera.
Does require soldering. Contact us if you would like a specific cable made up for your needs.
The inline 2 pin plug can accept cables with a thickness between 4 and 6.5mm. Cables outside of this range may affect the waterproof rating. The bulkhead socket has a waterproof cover for when not in use.
Specifications:
Material: Plastic
Pins: 2Pin
Panel hole size: 13mm
Maximum thickness of panel: 3.5 mm
Wiring method: Solder
Contact material: copper (gold plated)
Working temperature: -25°C to +85°C
Waterproof: IP68
Relative humidity: 90%-95% (40±2°C)
Salt spray: 48H in 5% NAC1 mist
Sealing ring: Silicone
Insulation resistance: 500MΩ under normal conditions
Contact resistance: < 5 milliohms
Rated current: 13 Amps
Operating voltage: 250V (AC) Withstand voltage: 1500V (AC)
Plug dimensions: 48mm x 18mm Dia.
Bulkhead socket dimensions: 23mm x 19.5mm Dia.
